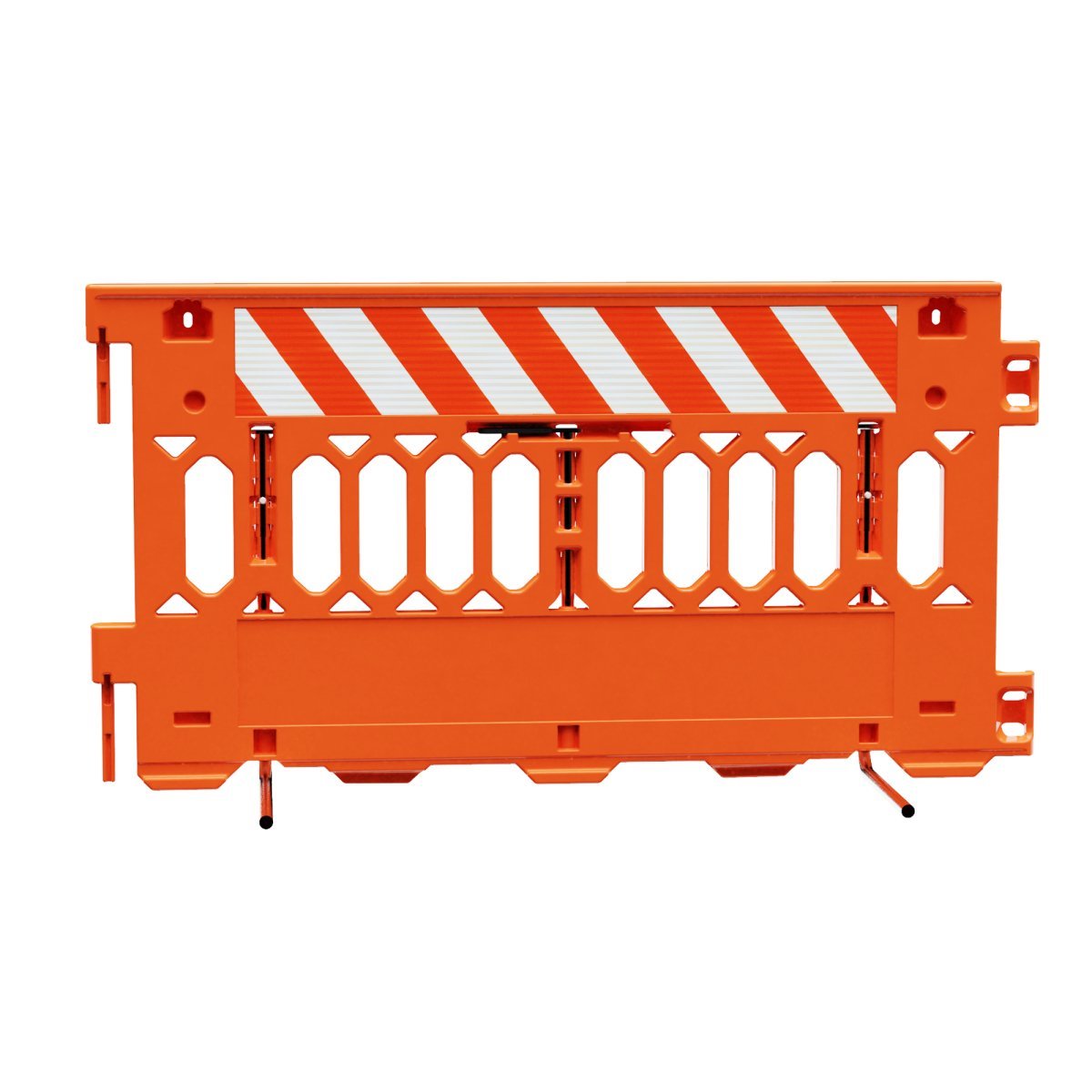

Pedestrian Safety Barrier PATHCADE, 2008-O-HIPL-T, Orange. One Section of High Intensity Prismatic Grade Striped sheeting on one side of the barricade, LEFT Top Only One Side
Pedestrian Safety Barrier PATHCADE, 2008-O-HIPL-T, Orange. One Section of High Intensity Prismatic Grade Striped sheeting on one side of the barricade, LEFT Top Only One Side


Main Product: Pedestrian Safety Barrier
: $164.13


Product Code: 2008-O-HIPL-T
Qty:

Description


Pedestrian Safety Barrier PATHCADE, 2008-O-HIPL-T, Orange. One Section of High Intensity Prismatic Grade Striped sheeting on one side of the barricade, LEFT Top Only One Side


ADA Pathcade Barricade System

Multi-Purpose Barricade System
  • Crowd Control
  • Manhole Guard
  • ADA Pedestrian Pathway System
  • Longitudinal Channelizing Device
Multi-functional barricade system meets ADA requirements
  • 72"L x 38"H
  • Continuously detectable edge at barricade top and bottom
Exclusive tripod leg system
  • No sandbags needed when using all 3 feet
  • Anti-trip foot on one side
  • Two larger feet on other side
  • Use only larger feet with sandbags for ADA Compliance
Easy handle turn deploys feet
  • Unique soft grip handle system
  • Quick turn moves feet out or back in
Stack 20% more
  • Nesting system allows for 19 units stacked on pallet
  • Lowers transportation costs
  • Stacking lugs keep units from shifting
Shape to any layout
  • Units pivot 120 degrees
  • 3 units in triangle layout for manhole guard
Robust dual connectors
  • Create easy to use linking system
Smooth, comfortable guardrail
  • Rounded edge on top of panel
Four recessed sheeting areas
  • Two sheeting areas, 8" x 50", on each side of panel
  • Your choice of retroreflective striped sheeting
Light shelves for standard barricade lights
  • 2 per section
Holes for attaching signage
  • Use screws to attach 20"W x 14"H sign
MASH Accepted
  • WZ-428
  • Meets MUTCD Standards
Made in the U.S.A.
